Description
System description

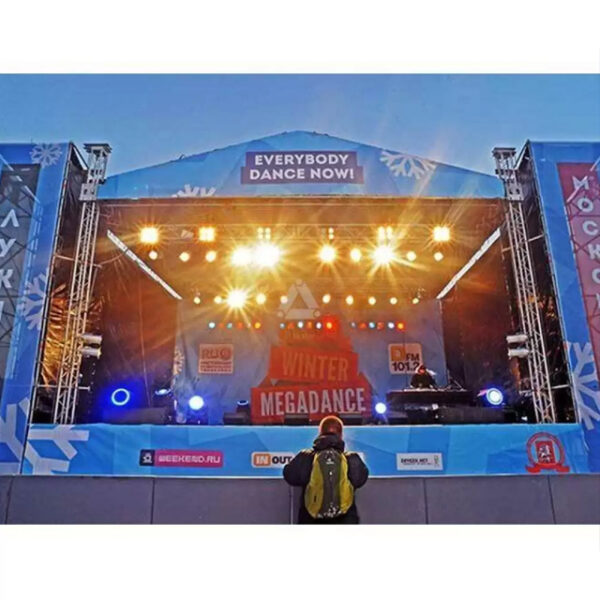

The MPT Roof is a tower-based structure with a pitched roof, a design that guarantees optimum strength. Primarily configured from standard trusses, the MPT Roof is available in three different sizes. However, the unrivaled flexibility of the system affords nearly 40 calculated building varieties or setup possibilities for your MPT Roof. At ProlyteStructures Roof Systems, we are aware that every season and every event brings different demands, and accordingly, we have designed the MPT Roof to accommodate an extraordinary range of applications.
Advantages
- Designed to offer optimum strength
- Versatile applications
- Extra options available
| Technical specifications – MPT Roof | |
| Dimensions | 12 x 10 m, 10 x 8 m (39’4” x 32’9”), (32’9” x 26’3”) |
| Loading capacity (UDL) | 12 x 10 m approx. 3950kg 10 x 8 m approx. 4500kg |
| Total weight | 12 x 10 m approx. 2400kg 10 x 8 m approx. 2100kg |
| Transportation volume | 12 x 10 m approx. 40m³ 10 x 8 m approx. 32m³ |
| Max. wind speed | 28,4 m/second, 63,3 mph |
