Description
System Description

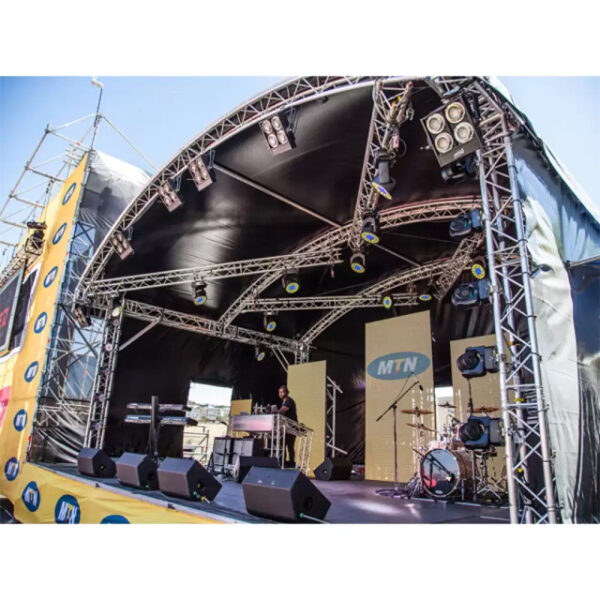

The Arc Roof is a fixed construction, based on three inward-curving trusses that are mounted to side masts. Special corners connect the arches to the main grid. Different configurations are made possible by simply changing the arches. The arched trusses have a keder profile on top for fitting the optional canopy.
ARC ROOF OPTIONS:
Our Arc Roof has different additional options that you can add to the base of the roof. You can select each of them to donwload the options available.
- ARC ROOF 6X4 SOUNDWING
- ARC ROOF 6X4 GROUNDRING
- ARC ROOF 6X4 LAYHER STAGE
- ARC ROOF 6X4 LAYHER + SOUNDWING
- ARC ROOF 6X4 STAGE FRAME B
- ARC ROOF 6X4 SOUNDWING + EASY FRAME B
Advantages
- Versatile application
- Easy to handle, quick setup
- Significant loading capacity
- Ideal for smaller events
- Extra options available
| Technical specifications – Arc Roof | |
| Dimensions | 10 x 8 m (32’9” x 26’3”) 8 x 6 m (26’3” x 19’8”) 6 x 4 m (19’8” x 13’1”) |
| Loading capacity (UDL) | 10 x 8 m approx. 2450kg 8 x 6 m approx. 1950kg 6 x 4 m approx. 1800kg |
| Total weight | 10 x 8 m approx. 1200kg 8 x 6 m approx. 800kg 6 x 4 m approx. 600kg |
| Transportation volume | 10 x 8 m approx. 32m³ 8 x 6 m approx. 20m³ 6 x 4 m approx. 16m³ |
| Max. wind speed | 28,4 m/second, 63,3 mph |
