LSU series – LSU straight

Description

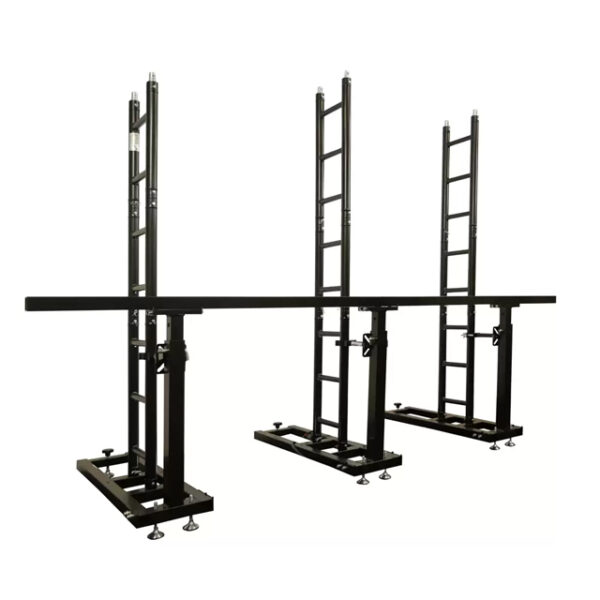

Building your LED screen from ground level is now easy, whatever your type of screen is, Prolyte offers a universal solution, the LED Stack system. This combination of a base unit, connection bar, and ladder truss, creates a very stable system to support your LED screens in various configurations and offers flexibility in height as well as width.

A side entry clamp with the universal connection plate mounted makes it possible to mount almost any type of LED panel quickly and easily. By using longer connection bars, you can easily extend your screen with another row of panels. Using the adjustable feet in the front and back of the base unit, you can safely level the system, so your screen is completely straight.

Available base unit
·   PC-LSU-BASE-L100-RAL9005

Available ladder truss lengths
·   PC-LSU-30L-L050-RAL9005
·   PC-LSU-30L-L075-RAL9005
·    PC-LSU-30L-L100-RAL9005

Available connection bar lengths
·   PC-LSU-CONNB-L100-RAL9005, 1m. length
·   PC-LSU-CONNB-L150-RAL9005, 1,5m. length
·   PC-LSU-CONNB-L200-RAL9005, 2m. length

Available LED panel adapters
·   PC-LSU-ADAP-03-RAL9005, panel adapter with M8-M12 bolts

Available support leg
·   PC-LSU-SUPP-90130-RAL9005 Adjustable leg 90-130cm

To prevent falling over of your led support system ballast is needed on every base unit (each meter). The amount of ballast is depending on the height of your screen. See the figures below.

The system can be build up until 4 meters in height without any lateral stabilization and is calculated to the latest standards.

LSU series also comprises of three solutions to suspend your LED system; H40R, H40V-MB, and S52SV- MB truss series all compatible with the regular truss series.

Advantages

• A side entry clamp with the universal connection plate mounted makes it possible to mount almost any type of LED panel quickly and easily.
• By using longer connection bars, you can easily extend your screen with another row of panels.
• Using the adjustable feet in the front and back of the base unit, you can safely level the system, so your screen is completely straight.

All items standard coated black, RAL9005
